Low moment coefficient airfoil for tailless model aircraft
See also
MH 45.

Characteristics

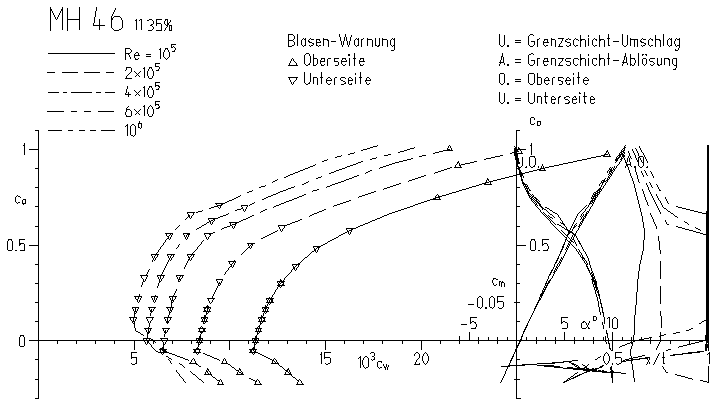

Calculated Polars (PROFIL/Eppler):

Calculated Polars (X-Foil/Drela):

All Polars in XML format

Coordinates in XML format

  x        y
100.000  0.000
99.671  -0.029
98.666  -0.098
96.976  -0.156
94.635  -0.164
91.678  -0.099
88.145  0.063
84.082  0.360
79.575  0.843
74.757  1.524
69.745  2.365
64.641  3.321
59.546  4.337
54.556  5.317
49.689  6.134
44.895  6.741
40.164  7.163
35.531  7.415
31.030  7.510
26.705  7.457
22.593  7.266
18.737  6.945
15.170  6.501
11.926  5.946
9.033  5.288
6.513  4.542
4.386  3.724
2.663  2.856
1.356  1.963
0.464  1.080
0.000  0.268
0.066  -0.402
0.717  -0.998
1.899  -1.594
3.574  -2.156
5.719  -2.669
8.304  -3.111
11.311  -3.459
14.732  -3.703
18.544  -3.849
22.716  -3.903
27.211  -3.878
31.980  -3.781
36.974  -3.624
42.139  -3.417
47.419  -3.173
52.751  -2.904
58.070  -2.620
63.313  -2.332
68.416  -2.045
73.314  -1.766
77.948  -1.497
82.262  -1.241
86.205  -1.004
89.727  -0.790
92.782  -0.599
95.331  -0.432
97.341  -0.284
98.793  -0.148
99.689  -0.041
100.000  0.000
