MH 34

Designed for electric powered pylon racing model aircraft (FAI class F5D)
and for F5B models.

Characteristics

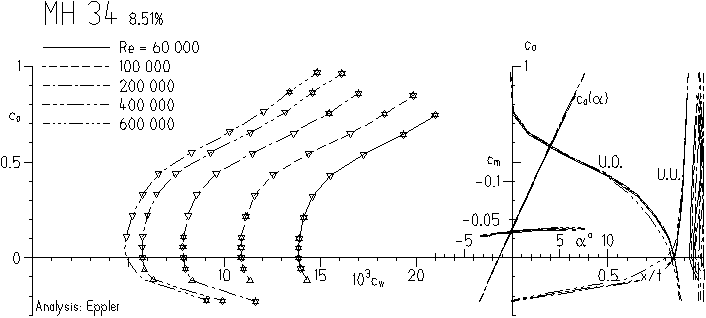

Calculated Polars (PROFIL/Eppler):

Calculated Polars (X-Foil/Drela):

All Polars in XML format

Coordinates in XML format

  x        y
  100.000   0.000
   99.658   0.040
   98.666   0.177
   97.093   0.429
   95.005   0.781
   92.454   1.197
   89.470   1.642
   86.076   2.095
   82.306   2.545
   78.194   2.983
   73.783   3.405
   69.124   3.805
   64.268   4.174
   59.270   4.506
   54.183   4.793
   49.064   5.029
   43.966   5.206
   38.946   5.320
   34.057   5.364
   29.348   5.335
   24.869   5.228
   20.664   5.040
   16.773   4.771
   13.232   4.420
   10.071   3.991
    7.316   3.488
    4.985   2.919
    3.093   2.297
    1.647   1.640
    0.649   0.975
    0.105   0.348
    0.029   0.165
    0.001   0.032
    0.010  -0.083
    0.066  -0.191
    0.169  -0.302
    0.627  -0.628
    1.729  -1.110
    3.326  -1.566
    5.408  -1.973
    7.962  -2.324
   10.967  -2.613
   14.398  -2.839
   18.223  -3.003
   22.403  -3.107
   26.897  -3.155
   31.657  -3.151
   36.632  -3.101
   41.766  -3.009
   47.004  -2.883
   52.284  -2.727
   57.548  -2.547
   62.734  -2.347
   67.780  -2.134
   72.629  -1.909
   77.221  -1.676
   81.501  -1.434
   85.419  -1.175
   88.949  -0.891
   92.076  -0.601
   94.766  -0.343
   96.970  -0.149
   98.621  -0.038
   99.650  -0.003
  100.000   0.000
