Users Manual

JavaFoil presents itself in a single window or in a single applet area in your browser. It contains a row of tabs on top and a card area below. Each tab shows its associated card which contains input and output elements for a certain topic.

The cards are divided in topics like Geometry, Modify, Velocity, Flow Field, Boundary Layer, Polars and Options. Most of these cards have a button bar at the bottom, which contains command buttons acting on this specific card. Depending on the security settings of your Java system, some of these buttons may be inactive (see Applet or Application). Each card is described in more detail in the following sections. Some cards have a "Tear Off" button, which pulls the card from the card stack and shows it in a window of its own so that you can access it while working on another card. When you close the card window, it will be put back onto the card stack.

In JavaFoil you work with a single "virtual" working airfoil. This means, that you have one airfoil, which can be designed, analyzed, modified and analyzed again an so forth. All modifications like flap deflection, importing a new blade geometry will alter this virtual airfoil. You might want to save intermediate airfoils.

Usually most data are normalized (e.g. chord length = 1.0). In all other cases, the unit system is metric for input data and results. Some conversion factors for metric and imperial units are given on the Tips and Tricks page.

Language and decimal character:
JavaFoil
uses your systems language settings to select the strings used for any textual output as well as to define the decimal character. See the description of the Options Card below.

Printed user's manual:
This page presents a short overview only. You can download a PDF version of a more detailed user's manual.

Geometry Card

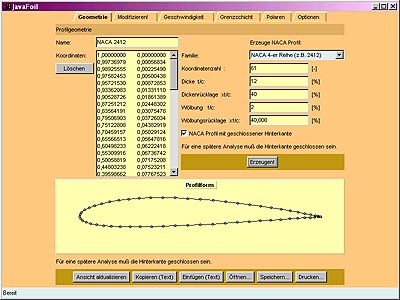

The Geometry card is used to prepare the coordinates of your current airfoil. This is the geometry which is used by all tools in JavaFoil.

It shows a list of coordinates and a plot of the resulting airfoil shape. You can enter or paste arbitrary coordinates into this field and press the "Update View" button to copy the coordinates into the working airfoil. Remember that the coordinates must be ordered trailing edge > upper > nose > lower > trailing edge.

Additionally it contains options to create standard airfoils from several families, namely:

  • 4-digit series, like NACA 2415, based on
    • maximum thickness and its x/c location
    • maximum camber and its x/c location
  • 5 digit series like NACA 23015, based on
    • maximum thickness and its x/c location
    • design lift coefficient
    • x/c location of maximum camber
  • 16-series like NACA 16-412, based on
    • maximum thickness and its x/c location
    • design lift coefficient
  • 6-series like NACA 64-412, based on
    • maximum thickness and its x/c location
    • design lift coefficient
    • camber line specification (a=...)
    • A-Modification
      Note that the 6-series sections are only approximated, for correct data use tables from NACA reports.
  • TsAGI "B" series airfoils, based on
    • maximum thickness
  • NPL "EC", "EH" series airfoils, based on
    • maximum thickness and its x/c location
    • maximum camber and its x/c location
  • symmetrical Circular Arc airfoils, based on
    • maximum thickness
  • symmetrical Double Wedge airfoils, based on
    • maximum thickness and its x/c location
  • Cambered Plate airfoils, based on
    • maximum thickness
    • maximum camber and its x/c location
  • Van de Vooren conformal mapping airfoil, based on
    • maximum thickness
    • trailing edge angle
  • Newman airfoil, based on
    • maximum thickness
  • Helmbold-Keine airfoil, based on
    • maximum thickness and its x/c location
    • trailing edge angel
    • radius at center of airfoil
    • leading edge radius
      Note that only a subset of possible parameters leads to reasonable shapes.

Note about all x-y graphs:

  1. You can copy most of the graphs to the clipboard or save them to a file in AutoCad DXF, Adobe Illustrator encapsulated Postscript or SVG vector graphics format by pressing the right mouse button while the mouse pointer is located over the graph (context menu).
    Paste the test into a text editor, save as filename.dxf, .eps/.ai or .svg and import into your favorite graphics, CAD or word processing program.
  2. If you have allowed the applet to write files, or if you run JavaFoil standalone, you can also export the graphics directly to a file, without using the clipboard.
  3. Additionally, you can import numerical data into a graph to enhance it. For example you can import test results into the the polar plot for comparison. Import works only, if the graph already contains some data, so that the axis system is already set up. The data is lost when the graph is cleared for a new calculation, though.
These NACA airfoils are still used in a lot of applications, but most of them are not top performers by today's standards. As the original definition creates airfoils with open trailing edges, an additional option is provided to close to airfoils smoothly.

You can save the generated coordinate set in several file formats. Note that JavaFoil recognizes the file type by its extension, so you have to stick to the proposed extensions.

Modify Card

Here you find tools to modify the geometry of the current airfoil.

You can create a new distribution of points, change the camber and the thickness or deflect a plain flap. A scaling and rotating option is also available to transform the airfoil. The result of any modification is shown at the bottom of the card and is also transferred back to the Geometry card. Each transformation is executed when you press the button to the left of the corresponding text entry field.

Before a modification is performed JavaFoil saves a copy of the current geometry on top of a stack and you can either use the "Undo" button to back up to the previous configuration or select the desired configuration from the combo box. It is recommended to enter a name which reflects your modification before pushing the "Modify" button (e.g. "NACA 0010 / F+10" for a 10° flap deflection). To reduce memory overhead, the number of undo steps is currently limited to 10. Each additional modification will drop one saved geometry from the bottom of the stack.

Notes:

  1. Changes to the camber are performed by scaling an existing camber line. Thus it is not possible to camber a symmetrical airfoil, as this would additionally require the specification of a camber line shape.
  2. Changes act on the selected airfoil element(s) (in case of multi-element airfoils).
Changing the Number of Points
You can increase or decrease the number of points of the selected airfoil element. If you specify a negative number of points, JavaFoil uses a special tight spline curve which produces an almost linear interpolation between the given coordinate points.

Deflection of a simple Flap
Uses the given a flap chord and deflection angle (positive = trailing edge down) to rotate the coordinate points covered by the flap. No points are added to the convex side of the airfoil, so any initially coarse distribution might lead to a poor representation of the flapped airfoil. Also some points on the concave side are deleted if they would move inside of the flapped airfoil.

Modification of Thickness and Camber
Creates a new shape based on the camber distribution and the thickness distribution of the current airfoil. Both distributions are derived by analysis of the y-coordinates for a given x station - the thickness distribution is not applied at right angles to the camber line. This will introduce a small error where the camber line has a larger inclination. The extracted distributions are then scaled with the ratio of prescribed to current maximum value. The x-axis is defined to be the straight line from the trailing edge to the coordinate point having the largest distance to the trailing edge.

Scaling
Scaling is always performed with respect to the origin of the coordinate system (0/0). X and Y coordinates are multiplied with the given factor.

Trailing Edge Gap
The upper and lower surface of the airfoil are rotated around the leading edge point to open or close the trailing edge.

Rotation and Translation x/y
Allows arbitrary modifications to the position of the airfoil.

Duplicate
Creates a copy of the selected airfoil element. You have to move and/or rotate it afterwards so that it does not overlap its parent.

Delete
Deletes the selected airfoil element.

Flip Y
Mirrors the selected airfoil element along the x-axis (upside down transformation).

Copy (Text)
Copies a text buffer to the clipboard if your system security settings allow this. The buffer contains the coordinates of the camber distribution (xc/yc) and the coordinates of the thickness distribution (xt/yt) for the current airfoil.

Design Card

This card can be used to design an airfoil based on a prescribed target pressure (coefficient) distribution. Such a method is called "inverse design" - the geometry of the airfoil is a result of the given pressure distribution.

Pressing the "Setup" button initializes the design procedure by copying the current airfoil. This airfoil is then analyzed at the given angle of attack and produces an initial target pressure distribution.

Now you can modify this pressure distribution either by using a smooth distortion of the target Cp or in a single point mode. Simply grab a point on the target distribution and drag it up or down to modify the curve.

After you are satisfied with the target Cp-distribution, you can run several design cycles and check the result. The current solution is overlaid on the previous results to allow for convergence check.

You can "Redraw" the screen to clear the intermediate results.

Instead of viewing the Cp-distribution in the usual way Cp=f(x/c) you can "unfold" the distribution by plotting Cp=f(s). Here s is the arc length measured along the airfoil surface (the order is upper surface, nose, lower surface). This representation makes it easier to modify the leading edge region.  When this viewing mode is active, a slider can be used to enlarge the leading edge or trailing edge regions.

A relaxation factor helps to stabilize the procedure and to smooth the geometry changes - usually a value between 10% and 25% is sufficient.

Typically, the number of design steps should be between 10 and 50 steps. You can repeat the design until JavaFoil has reached the target.

The analysis takes into account the effects of ground proximity as well as multiple elements. Note that the design procedure only acts on the first element of multiple elements. You have to change the order on the Geometry card if you want to design another element.

If you want to define the target pressure distribution by numbers, you can use the "Details..." button to open a window where you can enter or paste x/c, y/c, Cp triples. From these data, JavaFoil only reads the Cp values, changing x/c or y/c will have no effect.

Notes:

  1. When "symmetric Cp modification" is checked, the Cp curves for upper and lower surfaces are modified in the same manner. This results in a global modification of the airfoil thickness.
  2. When "anti-symmetric Cp modification" is checked, the Cp curves for upper and lower surfaces are modified with reversed signs. This results in a global modification of the airfoil camber.
  3. When none of both options is checked, you can modify the Cp values for single points, which is useful for smoothing wavy airfoils.
  4. The method is not foolproof and may diverge if the changes are too large. Problems may occur if modifications close to the leading and trailing edges are performed. This is because the stagnation point region is very sensitive to small changes in overall circulation.
  5. The tool tries to translate any arbitrary Cp-distribution into a shape. If the target distribution is "ill posed", it may happen that no shape exists which creates such a distribution!
  6. Markers on the airfoil shape indicate the results of the boundary layer analysis: green: transition, red: separation.

Velocity Card

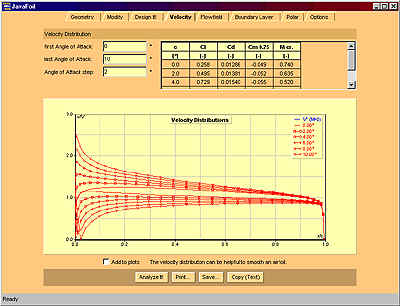

This card can be used to calculate the velocity distribution on the surface of the airfoil for several angles of attack. As usual, all angles are counted from the x-axis of the airfoil.

The graph shows the velocity on both sides of the airfoil and can be used to smooth airfoils. If the velocity distributions show wiggles and zig-zag waves, any subsequent boundary layer analysis on the Polars card will probably create unrealistic results. To smooth an airfoil, go back to the Geometry card and change single y-coordinate values or use the Design card to modify the velocity distribution directly. Then re-analyze. Yes, this is slow, but possible and probably better than an automatic global smoother which would smooth over the whole airfoil.

You can display either the distribution of the local velocity v/V or the resulting local pressure coefficient Cp. If  a Mach number other than zero is specified on the Options card, the critical velocity ratio V* respectively the critical pressure coefficient Cp* is plotted also. The distributions are corrected for compressibility effects by the Karman-Tsien rule, but one must be aware of the fact that such corrections are valid only for Mach numbers below approximately 0.7.



Notes:

  1. The Mach number from the Options card will be used for a compressibility correction on all cards. The corrections work reasonably well for Mach numbers below 0.75. If supersonic flow occurs somewhere on the airfoil surface, the code will not fail, but you would need a different type of analysis code for transonic and supersonic flow.
  2. The table in the upper right of the card lists force and moment coefficients which are determined for the Reynolds number taken from the boundary layer card. However, the velocity distribution shown is for the inviscid flow. i.e. will not be affected by Reynolds number.
  3. The table also shows the critical Mach number for each angle of attack. If the onset flow exceeds this Mach number, supersonic flow will occur somewhere on the airfoil. This Mach number is also known as the "Critical Mach number". As usual you can copy it using the context menu.

Flow Field Card

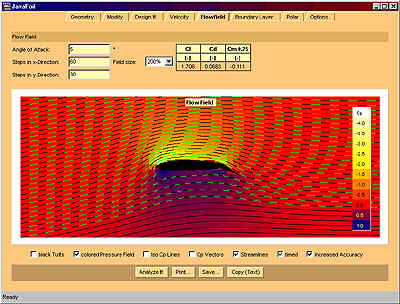

If you want to get an impression of how the flow around the airfoil looks like, this card is for you.  The panel analysis method works with the surface of an airfoil only, but when the surface velocity has been determined, potential flow theory can be used to calculate the flow velocity and direction anywhere in space.

You can specify a regular x-y grid and an angle of attack. After solving for the surface velocity distribution, an evaluation is performed for each point on the grid.

The buttons in the control bar at the bottom of the card perform the following actions:

Analyze It!
performs the analysis of the flow field at all grid points plus any additional post-processing like streamlines or iso-Cp lines.

Print...
Sends a copy of the picture to the printer, if your system security settings allow this.

Save...
Creates a text buffer which contains the coordinates and the velocity vector for each grid point (x, y, vx,  vy and v). This text buffer is saved to a file if your system security settings allow this. The format is suitable for the commercial plotting program Tecplot™ (by Amtec Corp.).

Copy (Text)
Like the Save... command, but the text buffer is copied to the clipboard if your system security settings allow this.

Notes:

  1. As each evaluation can be time consuming, it is recommended to start with the coarse default grid and refine depending on the power of your computer and the amount of time you wish to spend.
  2. The rectangular grid is simply placed on top of the airfoil. It is not adapted to the airfoil shape. While interior points are excluded in the calculation, a coarse grid will create a rough outline of the airfoil only.
  3. The graph shows, how the airfoil affects the whole flow field, not only the immediate neighborhood of the section.
You can select from the following display options:
  • tufts ... shows a black "tuft" at each grid point, which is aligned with the local flow direction.
  • colored cells ... colors a rectangle around each grid point according to the local pressure. This makes for a nice picture of the pressure field around the airfoil and shows how far the pressure is changed due to the airfoil.
  • iso Cp ... plots lines of constant pressure, like altitude lines on a map.
  • Cp-Vectors ... plots pressure vectors normal to the airfoil surface.
  • stream lines ... black stream lines are drawn starting at the left border. The result resembles the injection of smoke into a wind tunnel.
  • timed stream lines ... the stream lines are dashed to show the distance traveled during equal time intervals. Models something like a pulsed smoke generator. You will notice that particles arriving side by side at the leading edge will NOT meet again at the trailing edge.
  • higher accuracy ... this option controls the calculation of the stream lines only. When selected, a 4th order Runge-Kutta scheme and a smaller time step are used, otherwise simple forward differencing is employed. The results are more accurate in regions where the streamlines are highly curved - calculation time is increased by a factor of 5, though.



Boundary Layer Card

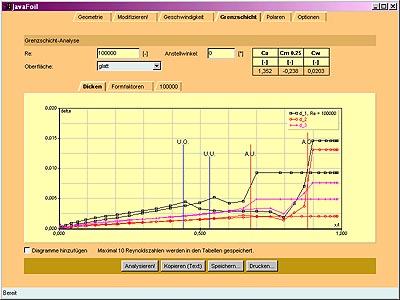

This card is a source of information for the experts. It shows all important boundary layer parameters like thickness and shape functions. Additional parameters are available in the listings. The abbreviations and symbols can be found on the quick reference card page. A fixed transition location can be defined on the Polars card (see below).

More details...


Polars Card

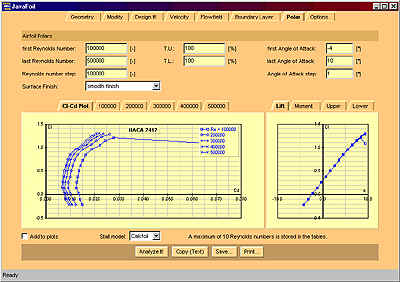

When you have created or imported a sufficient smooth airfoil shape, you can calculate lift and drag on this card.

After specification of the desired Reynolds number and angle of attack range as well as selecting a surface roughness you can start the analysis. For each Reynolds number / angle of attack condition, JavaFoil will first calculate the velocity distribution and then perform a boundary layer analysis. The resulting lift, drag and moment coefficients as well as location of transition and separation will be presented in graphs and tables. A transition strip can be simulated by specifying a transition location x/c for both sides of the airfoil (the default setting of 100% corresponds to natural transition).

The user can select between different stall and transition models (the transition models are described here).

Note: It is not necessary to use the Velocity Card before calculating polars.

Aircraft Card

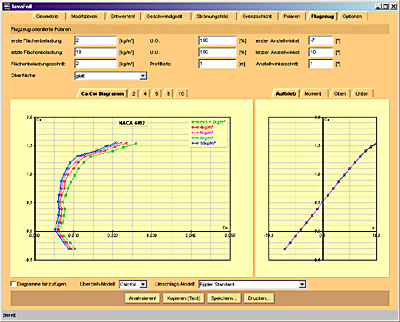

The Polars card analyzes your airfoil for constant Reynolds numbers. For an aircraft in flight the lift coefficient depends on the flight speed and hence on the Reynolds number.

The Aircraft card makes it possible to analyze airfoils in an aircraft oriented way. It does not analyze and aircraft, though!

Instead of specifying a Reynolds number range you specify a range of wing loadings. Additionally you define the mean chord length and of course a range for the angle of attack. For each wing loading / angle of attack condition, JavaFoil will now find the matching Reynolds number. Like on the Polars card, the resulting lift, drag and moment coefficients as well as location of transition and separation will be presented in graphs and tables.

Note that the kinematic viscosity and the density are taken from the Options card. For different altuitudes you have to adjust these values accordingly.

Options Card

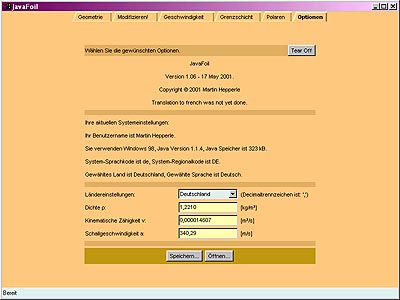

This card offers some information about your Java system and it contains a combo box to select a different country setting. The country setting also affects the decimal separator. Initially, the language will be selected automagically, based on your system settings (or according to your command line parameters). The default language is English, but if you prefer your native language, contact me by eMail to receive a file with the character strings to translate.

You can save and restore the current state of JavaFoil to revert later to a previous project (see security settings).

Also you can specify some properties of the fluid where you want the airfoil to operate. The kinematic viscosity is needed for the calculation of the local Reynolds number and the speed of sound is needed for the Mach number. Currently, these parameters are currently only required for the Aircraft card.

The aspect ratio is used for an approximate correction of the results on the Polar and Aircraft cards for a finite wing. First the 3D lift coefficient CL is determined by adapting the 2D Cl. Mach number and aspect ratio are taken into account. Then the 3D drag coefficient CD is calculated by adding the induced drag coefficient for a wing with elliptical lift distribution to the Cd of the airfoil.

Finally, the scripting facility can be used to automate command sequences.
