A few Models

A more complete listing of Thimble Drome and Cox models can be found on my  Model Database page.

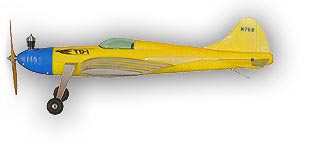

TD-1 Side View

TD-1 Top View

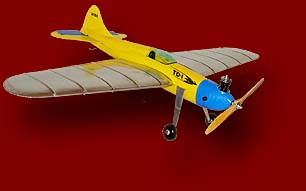

Thimble Drome TD-1
Manufactured in approx. 1959
Space Bug engine

This was LeRoy Cox' first entry into the world of model aircraft. The model was using a unique wing structure composed of shiny upper and lower aluminum shells. The fuselage was injection molded plastic and came in yellow, red or blue (later also in white, then called "Skymaster"). It used a modified Space Bug engine mounted in a sleek cowling. At $9.95 it was quite expensive then.

I have redrawn the fuselage decals - e-mail me if you want a copy of the file for printing on clear self adhesive film (e.g. in PDF or CDR format).

 [Instructions in PDF format

Wing Span: 620 mm
Length: 450 mm

TD-1 Perspective View

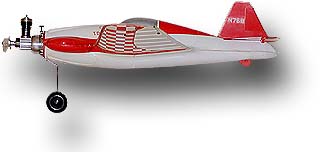

Thimble Drome TD-3
Manufactured approx. in 1960
#350 engine

This was the second ready to fly model in the TD series. This particular model has the white body and red checkerboard paint scheme «Flying Circus».  Similar to the TD-1, its main structure consists of two horizontally split shells, which are joined by a visible bead. The engine is an early Babe Bee, which followed the initial Space Bug Jr. used on this model type.

My model came with a big hole at the end of the fuselage, several cracks and a layer of yellow castor oil staining the complete surface. Unfortunately the white material has absorbed the oil so that it could only be cleaned by mechanical work (scraping and wet sanding). I decided to clean the left half of the model only and to keep the right half in "working condition".

 [Instructions in PDF format

Wing Span: 435 mm
Length: 400 mm

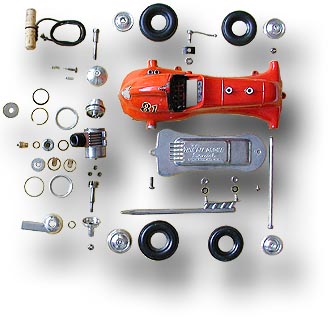

Thimble Drome Special or de Luxe
Manufactured in 1948-1950
.045 engine

This was the first tether car model made by Leroy Cox. During these early years, as he did not have much experience with the manufacturing of small engines, he bought the cylinder, piston, conrod and cylinder head from Mel Anderson. The same parts were used in the Anderson Spitfire .045 (“Spitzy”) engines.

The power unit itself is extremely compact and of a clever design by LeRoy Cox and his engineers. It consists of the engine, planetary gearbox, fuel tank with filter and exhaust system. The twin reed valve inlet  was breathing through the hollow rear left half axle and the exhaust was used to lubricate the gearbox.
For me this model looks very sleek and more elegant than its larger and more powerful brethren.

The car was also available as a cheaper pusher model without the engine and also with a spring clockwork engine.



Length: 220 mm
Width: 120 mm

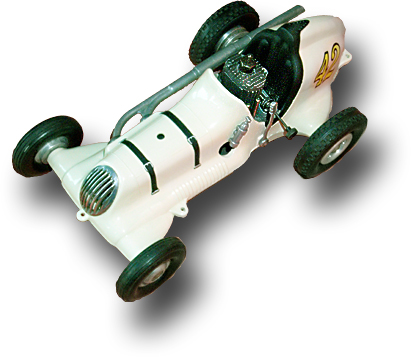

  Thimble Drome Doodle Bug
Manufactured approx. in 1949
.09 engine

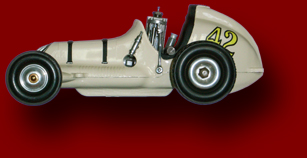

As the small “Special” lacked power in comparison to other tether cars, Cox developed the “Champion” family.  These models were advertised in form of a pusher and also in three powered versions. The smallest one equipped with a .098 c.i. engine was named “Doodle Bug” (1949). The medium sized “Champion 15” was powered by a .147 c.i. engine (1948) and the most powerful variant, the “Lightning Bug” came with a displacement of .199 c.i. (1949). This version was advertised as reaching speeds of up to 75 miles per hour.
The glow engines for these cars were again produced by the Cameron brothers in Chino California.

All these Cox cars had cast aluminum bodies and were painted in various colors. Additional parts like handbrake or the dummy radiator grille on the Champion were of cast aluminum too.

prices in 1949:
Champion – pusher model #303C, $3.95
Doodle Bug – .09 powered model #303C-09, $29.95
Champion 15 – .15 powered model #303C-15
Lightning Bug – .19 powered model #303C

Length: 245 mm
Width: 130 mm

  Thimble Drome Prop Rod
Manufactured approx. in 1957

The hot Prop Rod was a unique design, which was adapted over the years to lead via an all-plastic Prop Rod finally to the R/C Shrike.

The very first Prop Rod models came with the Space Bug Jr. The sample shown here was the first version of the Prop Rod with the new Babe Bee engine. It still has the cast aluminum bottom pan. Similar to the Thimble Drome Special, the wheel rims were turned from aluminum. The Prop Rod featured a detailed cockpit with gauges and a steering wheel. It could be run free or tethered around a center post.

Length: 310 mm
Width: 160 mm

F-100 Super Sabre
Manufactured approx. in 1959
#100 engine

The Super Sabre was one of the few models equipped with the small .020 PeeWee engine. The flight performance of these small Models (like the Pitts Special and the Ryan PT and Ryan ST) was obviously quite limited by their low weight and the high drag of the control lines. The low weight made these models prone to turning into the circle when they encountered even a mild breeze and the control lines were not shortened accordingly.

In case of the Super Sabre additional difficulties with a forward position of the center of gravity required considerable "up" elevator trim, causing additional drag.

Wing Span: 270 mm
Length: 350 mm

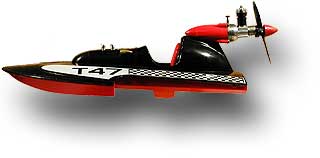

Thimble Drome Water Wizard
Manufactured approx. in 1959

The Water Wizard, was the first boat produced by Cox. Like the Prop Rod, it was powered by a Babe Bee engine. On a smooth water surface it could reach high speeds.

Length: 420 mm
Width: 220 mm

My Water Wizard is missing the rudder ... anyone who can help? Engine and prop will be replaced with a correct one soon...

A Dubl-Tuf  prop has bee donated by Milton Dickey.

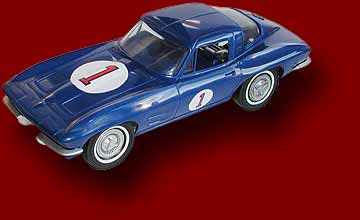

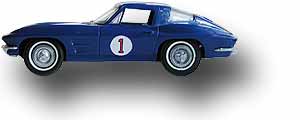

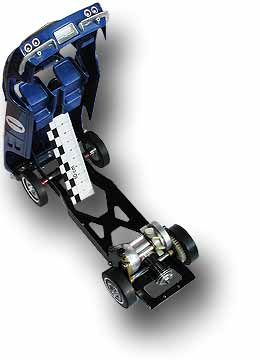

Thimble Drome Corvette
Manufactured approx. in 1965
#350-5 engine (ECJ #45a)

The Corvette, which was available in blue, red, black, and white, was powered by a Babe-Bee product engine. It was mounted on a steel chassis, which was also used for other models (Buick Riviera, Ford G.T., Chaparral and the Group Seven car). All these models were approximately scaled by 1/20 and could be raced free, tethered around a pole or drag raced along a straight string. Additionally, a slotted race track was available, eventually leading to the electric slot racing hobby of the 1970s.

All these models were quite detailed, with chromed plastic parts which had to be assembled by the buyer.

The timing of the engine was tuned for higher performance by raising the cylinder by a washer between cylinder and crankcase.

Length: 235 mm
Width: 85  mm

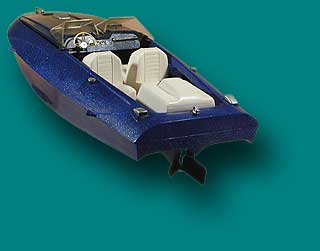

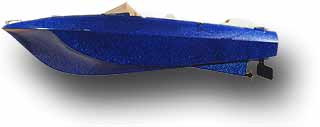

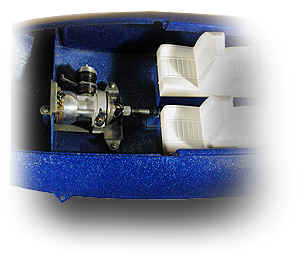

Cox Sea Bee
Manufactured in 1970
#350-5 engine (ECJ #45a)

The Sea Bee, was powered by an inboard Babe Bee engine. This engine was air cooled and it was coupled to drive shaft with a flexible coupler. A pull starter with an automatic clutch was used.  The  rudder could be adjusted for free running, but it also had two eyelets for running around a center post. The boat was also available in a green/cream color scheme.

Length: 410 mm
Width: 170  mm

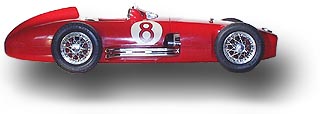

Mercedes Benz W-196 Side View

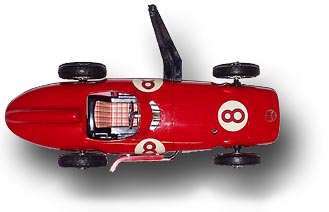

Mercedes Benz W-196 Top View

Thimble Drome Mercedes-Benz W-196
Manufactured in 1961
#350 engine

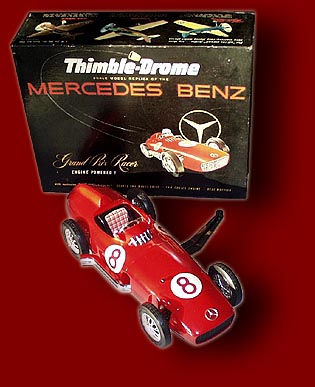

Mercedes Benz W-196 View with Box

This is a great looking model of the German 1954/55 racing car. In my eyes, one of the most desirable Cox cars.

The Mercedes-Benz Grand Prix Racer was quite complex with a front mounted .049 engine, connected to the rear axle gearbox via a driveshaft with universal joints.  Both axles were spring suspended and hard vinyl wheels with nicely detailed spoke wheels were fitted.

The model was run on a 4.5 m (15 ft) tether cable attached to the black bridle and a center post.

 [Instructions in PDF format

Length: 350 mm
Width: 130 mm

The COX Jeep. JeepSpiral gear and mechanical Clutch.
Manufactured in 1973-1974
#191-4 engine

This US-Army Willy's Jeep is a model with a lot of details like shovel, gearshift, antenna, and has an adjustable steering, which could be reworked for R/C control.  The engine and drive system represents the typical spiral gear system with the sliding gear (mechanical clutch) of this model generation.  A pull starter is used to start the .049 (0.8 cm³) Bee type engine and the fuel tank is located in the front of the car.

View of the COX Pinto.

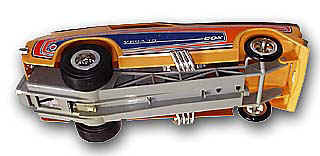

The bottom side of the Cox Pinto.

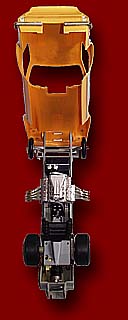

The open chassis of the COX Pinto.Chevy Vega
Manufactured in 1972-1976
#190-5 engine

This funny car has no steering - it ran along a straight course, until the engine was stopped. The engine is always engaged with the rear axle - there is no clutch mechanism. The model traveled along a string and the engine was killed, when the end of the thread was reached. Additionally, a parachute was deployed. I have not tried it out, as it was a lot of work to clean the model from the old fuel and oil residue (yuck!). But I have heard from former owners, that it was very difficult to get the model to run as it should (at least for kids).

In the 1960s and 1970s, Cox sponsored several racing teams like Bill Schifsky and  Danny Ongais running funny cars and AA dragsters. During the period from 1965 to 1967, COX also sponsored the Chaparral race cars (drivers: Hap Sharp and Jim Hall). Sponsorship also included air races, e.g. "Miss America", a P-51D Mustang piloted by Howie Keefe.

My model is still missing the «safety cage» for the driver as well as the parachute and the windscreen. The front bumpers and the fuel cell have been added by now, though. The car has the classical .049 (0.8 cm³) Bee type engine with a flywheel and a cooling fan.

There exists another model of an open wheeled dragster (Eliminator II) with a similar chassis, and a small downforce wing near the front wheels. Another similar car in pearl white (the Pinto) has also been manufactured during the same period.

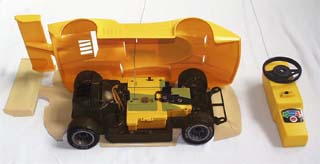

The COX Magblaster with R/C. Interceptor R/C
Manufactured in 1977-1978
#20362 engine

This car came with a 1 channel radio, which was used to steer the car and to control the throttle at the same time. Overriding the stops at the end of the steering wheel range caused the engine to «shift» either up or down in throttle. Starting the .049 (0.8 cm³) Bee type engine was accomplished by rapidly turning a flywheel attached to the engine. This wheel was connected to the spiral gear system with the sliding gear (mechanical clutch) of the previous models. The car was also called Magblaster (w/o R/C) and there was also a «Vanblaster» available, using the same chassis, but opening forward via front hinges instead of sideways.

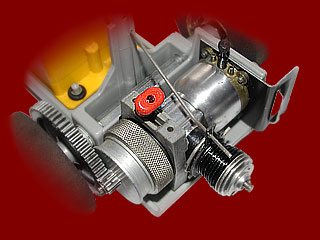

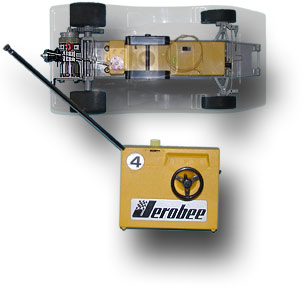

Jerobee McLaren MK 8B (Comando)
Manufactured in 1975 (JoMac#101)
350-4J engine (ECJ #141)

The JoMac company manufactured this 1/12 scale Jerobee two channel R/C car. Cox produced the power units for these models consisting of engine, tank, starter and flywheel units. Between the engine backplate and the car chassis we can see a thin black sheet aluminum heat sink which also directed some air flow towards the cylinder - probably not very effective.
JoMac sold the cars in various forms. The R/C transmitter with its angled screw-in antenna featured a steering wheel and a throttle lever which actuated the exhaust throttle using a piano wire linkage.

Engine choices were the 350-4J engine (as shown), a Tee Dee .049 (without recoil starter, good for speeds up to 32 mph) and a 350 engine with a drilled tank intended to act as a heat sink. Thermal problems are also noted in the instruction sheets, saying that only half of the fuel contained in the tank is usable, the rest evaporates...

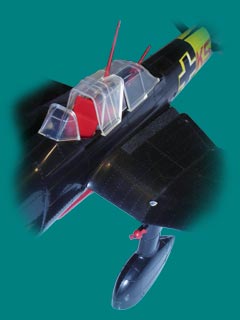

Stuka Ju-87D
Manufactured in 1974-1980 (#6400)
190-1 engine

The Junkers «Stuka» was a very popular Cox model which started it's career in green color in 1962. The black variants were produced since 1966, finally with upright engine installation up to 1985. The «Stuka» is a large and heavy model with a small lever arm and it's flight characteristics were not up to its good looks and it required a skilled pilot.

However, with its many fine details like sliding canopy parts, pilot and gunner, machine gun, antenna, sirens and a droppable bomb it makes a great display model.

Wing Span: 650 mm
Length: 460 mm

Star Cruiser-UFO
Manufactured in 1978-1979 (#7200)
360-3 engine

A model from the «Buck Rogers» series of Cox models developed during the Leisure Dynamics ownership of Cox. It was made very simple from one single piece plus the engine and a set of stickers. Rotation was prevented by four angled blades inside the propeller slipstream.
The COX Flying Saucer was made of Styrofoam. Flying Saucer
Manufactured in 1990-1991
#21924 engine

This «free flying engine powered space probe» looks weird and seems not to have been a big commercial success. Maybe it would have been in the 1960s. Also, it was probably not very long lived with its cardboard top cover and a few stickers attached to the bare styro-foam surface.

An early prototype of this model is said to have crashed near a small town, named Roswell, after its glow head burned out - but this accident has never been acknowledged in the public by the company.

Hustler
Manufactured in 1978-1979 (#3315)
#21924 engine

This control line model has been re-issued several times under different names and color schemes. The "Hustler" from the "Wings" series as shown came with a slotted exhaust screen cylinder which reduced power and minimized the risk of finger burns.

Wingspan: 350 mm
Length: 350 mm

The COX Bearcat with electric motor. F8F Bearcat "Beetle Bomb"
Manufactured in 1969-1997
electric engine

A typical control line model has two wires.  A typical electric motor needs two wires.  Hmmm... - why not combine both into an electric control line model?  The pilot holds the handle with an on/off switch and attaches a 9.6V racing pack of NiCd cells to his waist.  The whole thing is very clean and nearly silent, but I am not sure, whether it is as much fun as its fuel spitting, howling cousins.

Wingspan: 480 mm
Length: 375 mm

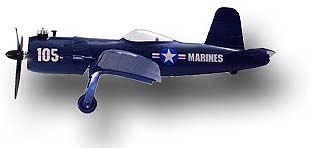

The Corsair in NAVY colors. Corsair "Marines"
Manufactured in 1994-1995
#21924 engine

This is a typical control line model with the .049 Babe Bee engine. It looks great, with its dark blue US-Marines paint scheme. In the side view, the wing angle of incidence seems to be very high.

Wingspan: 480 mm
Length: 380 mm

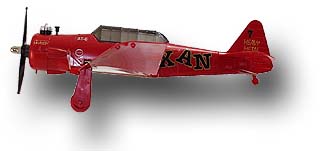

The AT-6 is flown in Reno. AT-6 "Texan"
Manufactured in 1995-1996
#21924 engine

This control line model was styled after the typical AT-6 class Reno air racer. It looks very nice, with all the stickers attached. As the company had been sponsoring a full size AT-6, the model also has two small sponsor stickers. A later, 1998 version of this model has an additional function to drop "bombs" on a target.

Wingspan: 510 mm
Length: 355 mm

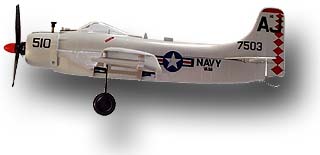

A COX Skyraider control line model. Skayraider "Navy"
Manufactured in 1995-1996
#97000009 engine

With its light gray NAVY paint scheme, this control line model looks very elegant, despite its fat belly. It is heavily riveted and features a «flick of your wrist» throttle mechanism: a quick flick of full up elevator opens the exhaust throttle and a short flip of down engages the throttle. Surely something you have to practice before trying this close to the ground. On this model, the three bladed prop is turning counter clockwise; the lower half of the fuselage and the wing are molded in one piece. I assume, that the same moulds have also been used in the mid-1960s for the first series of the Skyraider.

Wingspan: 508 mm
Length: 394 mm

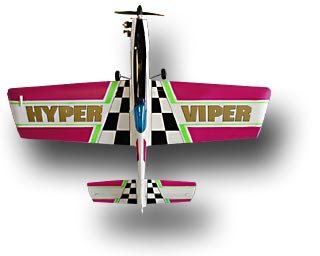

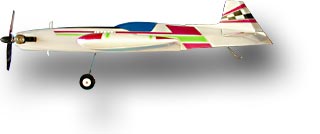

Hyper-Viper (Cox #6020)
Manufactured in 2003-2005
SureStart engine

This was the last stunt control line model developed by Cox. It has been developed for good flying characteristics and great aerobatic performance. Similar to a few former Cox stunt models (Crusader, Me 109) its lightweight foam wing has a symmetrical airfoil section which together with the short tail lever makes it highly maneuverable. It is a good aerobatic trainer, after mastering a trainer like the PT-19.

Wingspan: 700  mm
Length: 550  mm
