If you don't want to design your own model with MH airfoils, you might find
one among the news from Nuremberg.
(I don't have any whatsoever related connections to the
mentioned companies, and yes, there are still much more models with other
airfoils, which I cannot present here due to limited space and time)

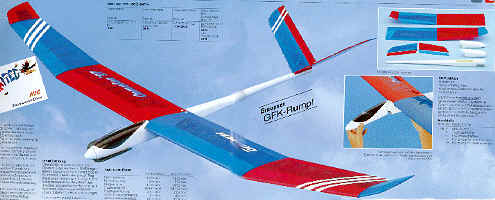

Graupner: Cumulus '97 - Hand Launch Glider
|
|
|
| Technical Data |
glider version / electric powered |
| wing span |
1870 mm |
| length |
1065 / 1070 mm |
| wing area |
0.313 m² |
| mass |
560 g / 810 g |
| motor |
Speed 400 class |
| airfoil mod. |
MH 32 |
|

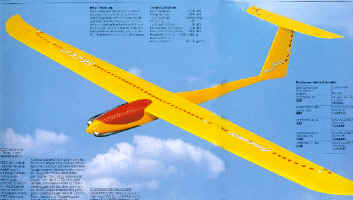

Graupner: Secco - Hotliner
|
 |
| Technical Data |
|
| wing span |
1475 mm |
| length |
820 mm |
| wing area |
0.18 m² |
| mass |
1200-1560 g |
| motor |
Speed 400 and above |
| airfoil |
MH 43 mod. |
|

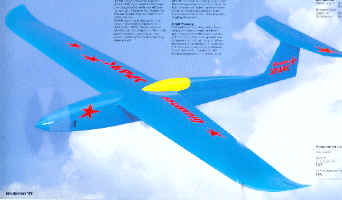

Graupner: Shark - Speed 400 Pylon Racer
|
 |
| Technical Data |
|
| wing span |
900 mm |
| length |
620 mm |
| wing area |
0.09 m² |
| mass |
530-795 g |
| motor |
Speed 400 class |
| airfoil |
MH 43 mod. |
|

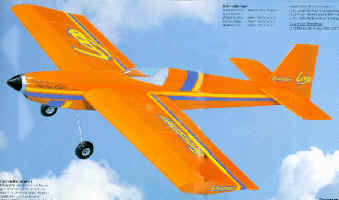

Graupner: Loop - Aerobatics / Fun Flyer
|
 |
| Technical Data |
|
| wing span |
800 mm |
| length |
800 mm |
| wing area |
0.164 m² |
| mass |
650 g |
| motor |
Speed 400 class |
| airfoil |
MH 32 symmetrical (probably twice the upper side) |
|
Simprop: Peppo - Speed 400 Hotliner
|
 |
| Technical Data |
|
| wing span |
1200 mm |
| length |
654 mm |
| wing area |
0.135 m² |
| mass |
515 g |
| motor |
Speed 400 class |
| airfoil |
MH 43 |
|
